CDSD marine cryogenic quick-freezing unit

After the fresh fish or frozen goods caught on board are sorted and loaded, they are put into the terminal quick-freezing device. The quick-freezing device will quickly freeze the fresh fish or frozen goods at normal temperature to the set temperature, and then transfer them to the cold storage room for refrigeration.

Control and safety protection:

A) The quick-freezing device has automatic control function. Under automatic condition, the working time of the quick-freezing device can be automatically controlled according to the preset quick-freezing time;

B) The quick-freezing device has manual control function. In the case of manual operation, the solenoid valve can be opened and closed manually and the working time of the quick-freezing device can be controlled;

Composition: The quick-freezing device consists of a set of condensing unit and hydraulic plate quick-freezing device.

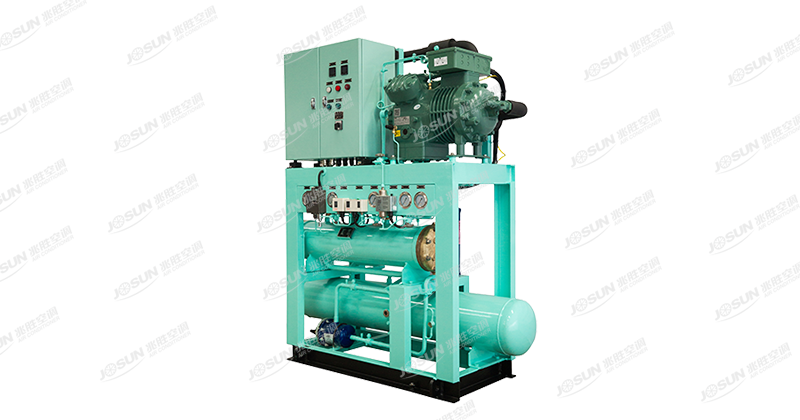

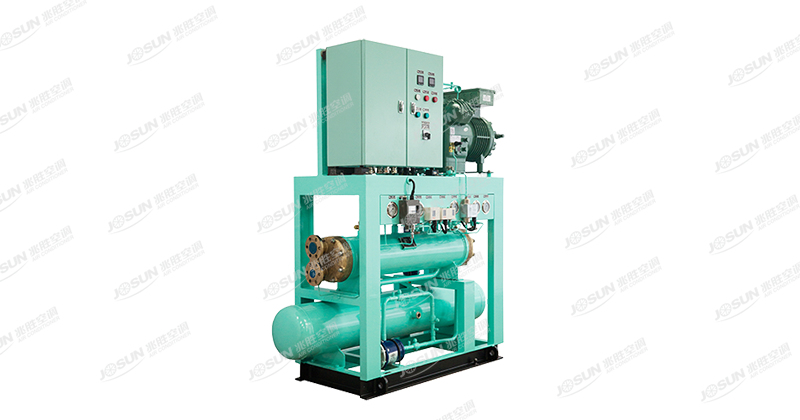

The condensing unit consists of Marine refrigeration compressor, Marine condenser, oil separator, gas-liquid separator, filter dryer, liquid storage device, electrical control box and frame, etc. The compression condensing unit equipment is assembled on the frame, which greatly reduces installation work and space footprint on the ship, while also facilitating operation. The hydraulic plate quick-freezing device consists of the plate quick-freezing device, hydraulic device, peripheral and valve group (including solenoid valve, electronic expansion valve, globe valve, etc.). The hydraulic plate quick-freeze unit is assembled on a pedestal, which also greatly reduces the amount of work and space taken up on the ship, and is easy to operate. The quick-freezing device is characterized by high automation, large refrigeration capacity, large amount of frozen food, fast freezing speed, compact structure and less space occupation. The high degree of automation of electrical control is conducive to reducing the labor intensity of operators, saving energy consumption and reducing operating costs.

detailed information
Associated products
Related cases
Contact us
Consultation

Product features:

"C" : Marine

"D" : low temperature

SD: quick-freezing device

Composition: The quick-freezing device consists of a set of condensing unit and terminal quick-freezing device.

Basic parameters：

● Cooling capacity: 10kW~200 kW

● Refrigerant: R404A is standard, and R410A, R507 and R449A are optional

● Freezing temperature: -25 ° C to -60 ° C

● Electric system: standard configuration AC 3PH 380V/50Hz, AC 3PH 440V/60Hz, if necessary, can choose other electric system: AC 3PH 415V/50Hz, AC 3PH 460V/60Hz, AC 3PH 480V/60Hz, AC 3PH 690V/60Hz

● Compressor: piston type or screw type (open type or semi-closed type), standard Bitzer compressor, optional BOCK, Carrier and other compressors

● Number of compressors: single or multiple sets.

● Adopt two-stage compression refrigeration loop, also can use the overlapping refrigeration loop.

● Energy regulation: multistage optional.

● Cooling mode: water cooling (fresh water/sea water).

● Marine shell and tube condenser: high efficiency corrosion resistant heat pipe, material is available hal77-2, B10, B30.

● Replaceable filter dryer.

● Protection function: high pressure, low pressure, oil pressure (oil level), low water pressure (water), lack of phase, overheating, overload, etc.

● Control components: the use of domestic and foreign famous brand control valve parts and pressure switch.

● Control mode: manual control or automatic control.
